Cross-Track Layouts

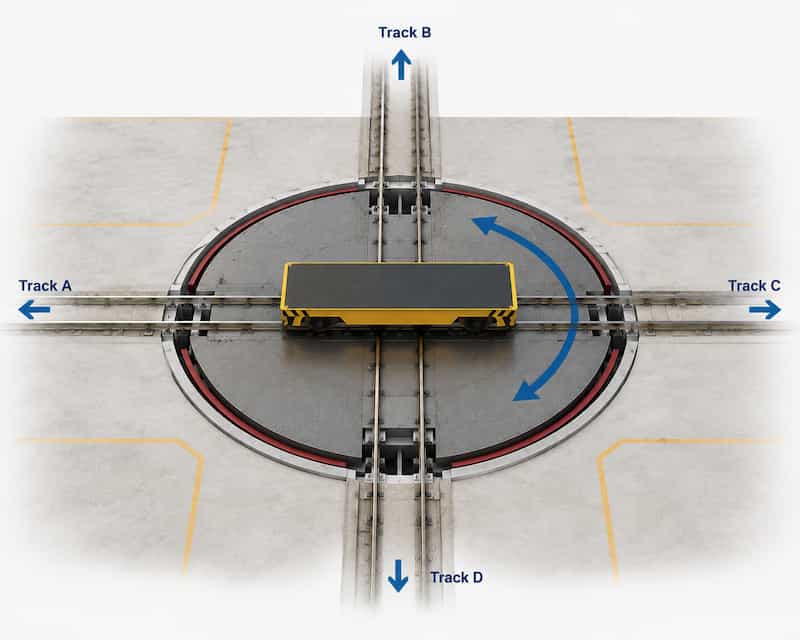

Suitable for track intersections where rail vehicles need to change direction safely within compact spaces.

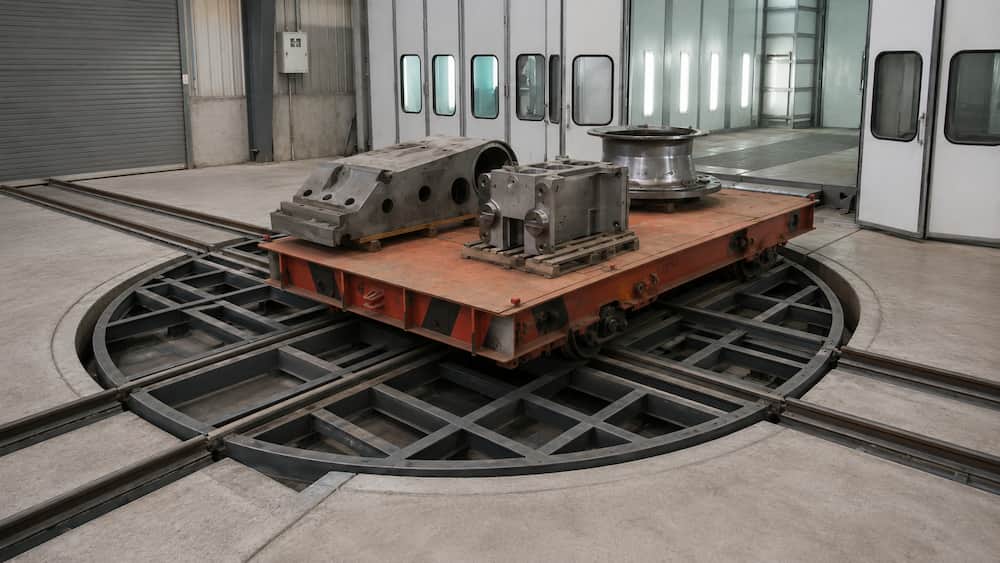

Rail Flatcar Turntables
Eliminate the daily stress of navigating tight industrial spaces with our custom-engineered rail flatcar turntables. Designed specifically for heavy-duty workshop environments, our rotating platforms maximize your available space and efficiently change rail vehicle direction. Whether connecting multiple branch tracks or optimizing a cross-track layout, we ensure safe and precise 90° turns for your most critical routing needs.
Rail flatcars normally move along fixed rail lines. When workshop layouts require 90° turns, branch tracks, or multiple routing directions, conventional curved tracks require significant space. A rail turntable provides a compact way to change rail direction by rotating the platform and aligning its rails with the required track.
Suitable for track intersections where rail vehicles need to change direction safely within compact spaces.

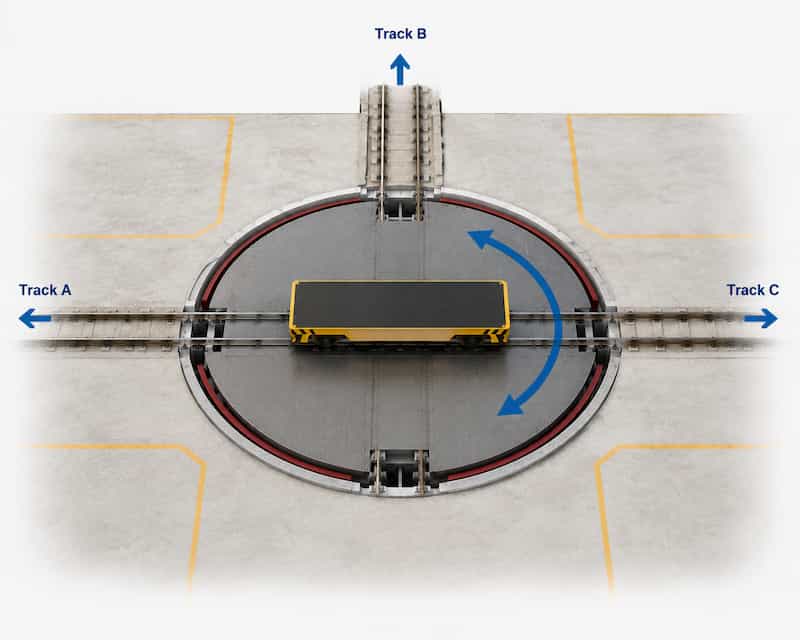

Designed for branch-track arrangements where multiple directions need to connect within a limited workshop area.

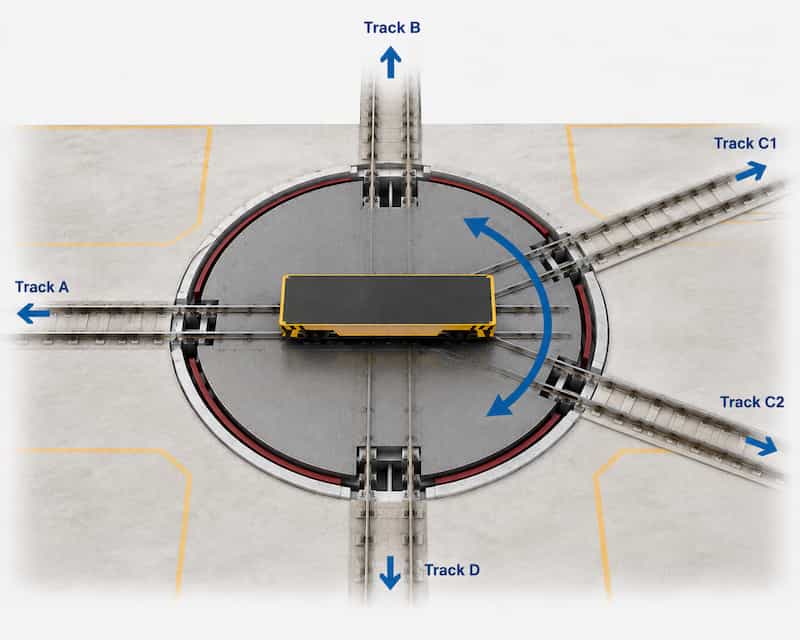

Can be configured for complex workshop layouts where rail routing requires controlled multi-angle direction changes.

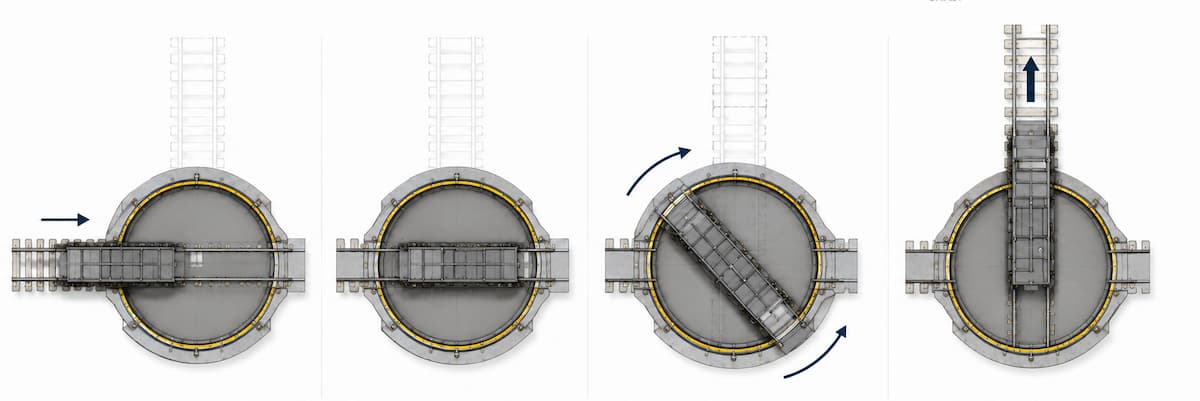

The rail flatcar enters the turntable, stops at the required position, and the platform rotates until its rails align with the destination track.
The rail flatcar enters the turntable along the existing workshop track.
The flatcar stops completely on the turntable platform at the preset position.
The turntable rotates smoothly to the required target direction.
The platform rail aligns with the destination track, allowing the flatcar to continue its route.

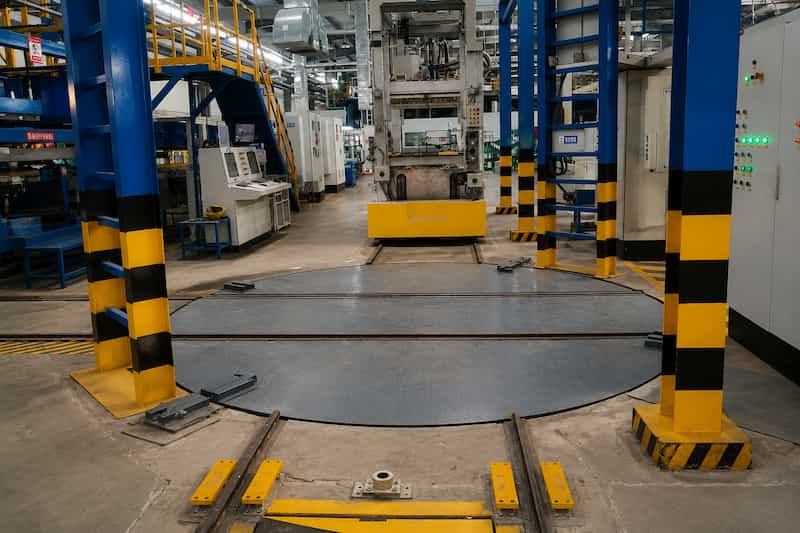

A customized heavy-duty rail turntable developed for industrial rail vehicle direction changes in heavy-load factory environments.
The RT4500-30T configuration uses a heavy circular structural frame, central rotating support, distributed support wheels, and a pin-gear drive system to rotate the platform reliably. Two P43 steel rails are installed flush on the platform with a 1050 mm center distance. The turntable is engineered for 0°–90° rotation and utilizes proximity-switch positioning for controlled, accurate stopping.

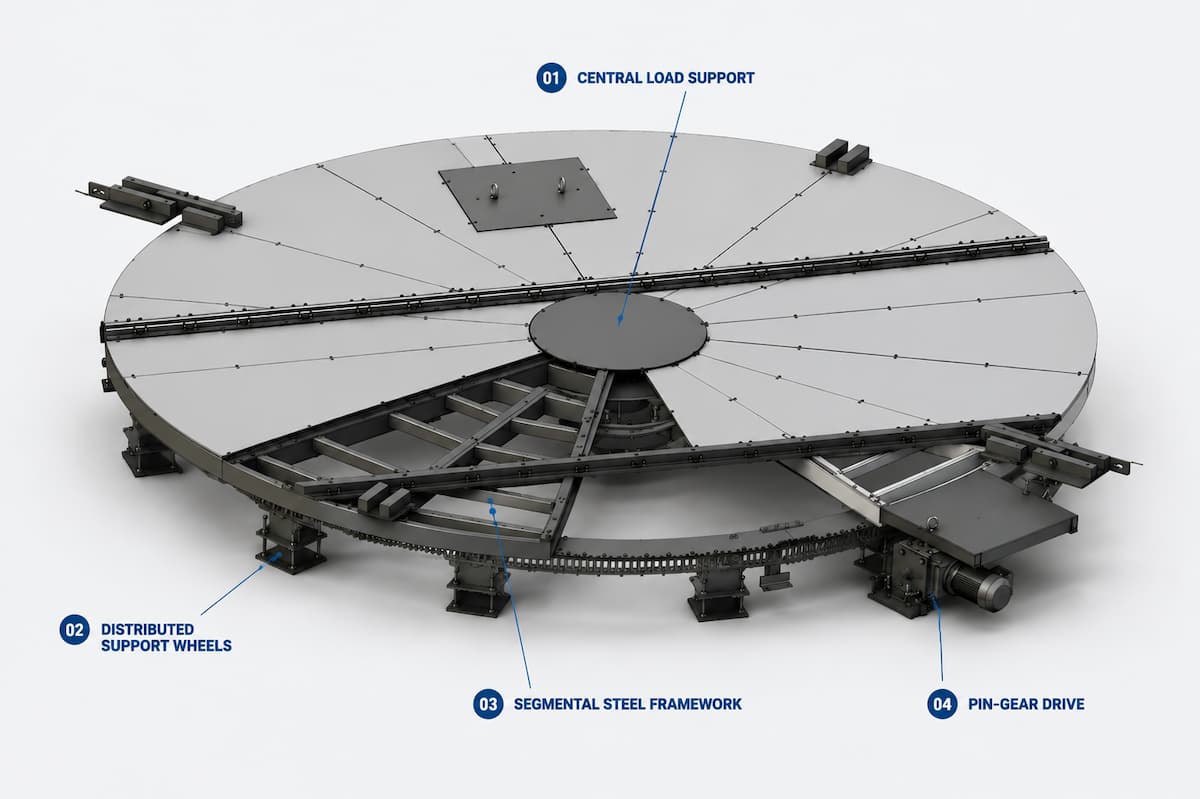

The turntable is built from a structural framework, central rotating support, distributed support wheels, drive components, and integrated rail sections.
The central support assembly functions as a key load-bearing and rotating component of the turntable system.
Support wheels are arranged around the circumference to carry heavy loads during rotation.

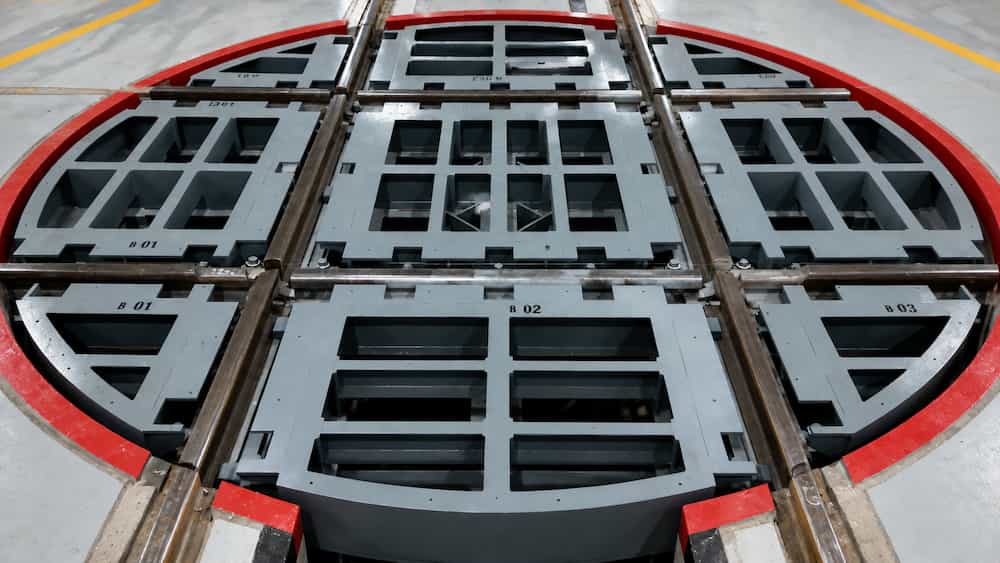

Multiple heavy structural steel segments are assembled into a rigid, complete circular framework.
A geared motor drives the pin-gear system, delivering smooth and stable rotation under heavy payload.
For a rail turntable, the rotating platform must integrate accurately with the surrounding track system. Precise rail alignment is essential for smooth vehicle transition and safe operation.
Turntable geometry, rail arrangement, load capacity, and operating requirements can be configured around your specific project layout.
For 90° direction changes at track intersections in industrial workshops.
For branch-track layouts requiring controlled rail direction changes within compact space.
Developed for complex workshop track systems and multi-angle routing requirements.

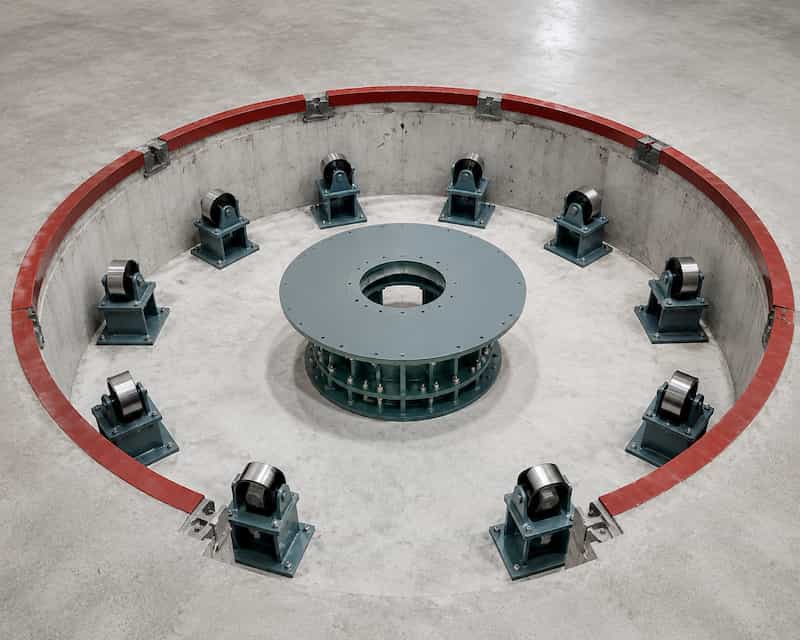

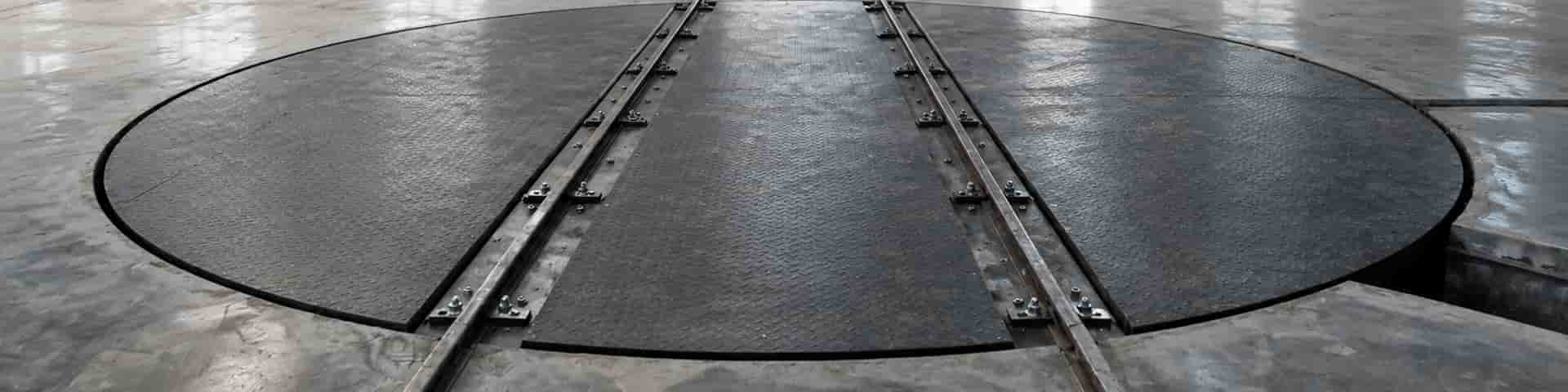

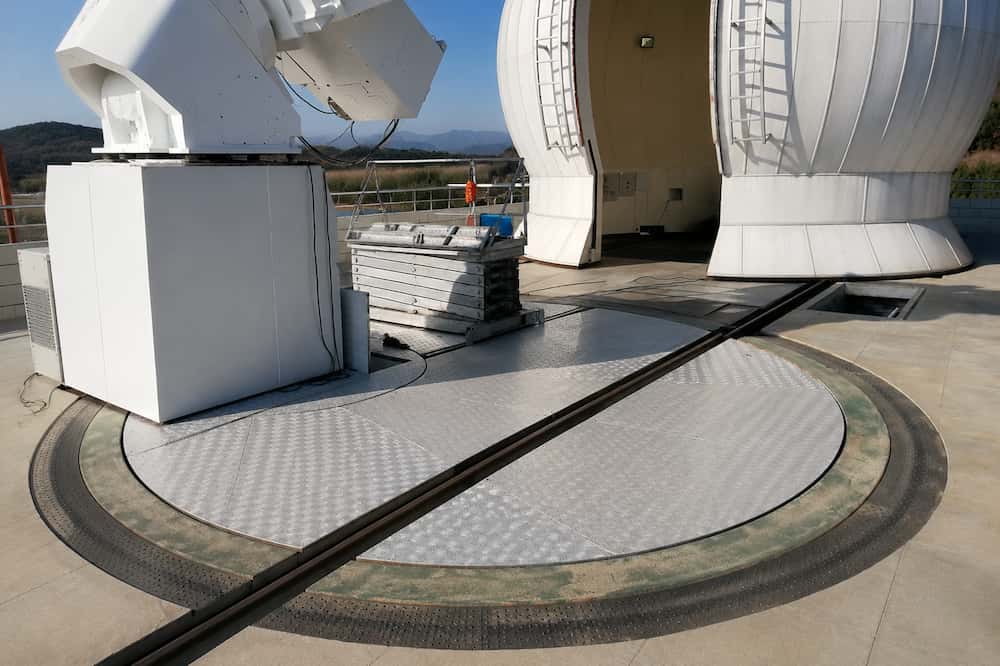

Installed inside a pit so the platform and rails remain completely flush with finished factory floors.
Rail turntables are engineered around the actual vehicle, track layout, and installation conditions of each project.
Talk directly with our technical team to check track layout compatibility, load feasibility, and obtain engineered drawings.
Send your workshop layout and vehicle dimensions for immediate support.
+86 139-4056-5574
Scan or click to chat directly
Please send us your specific rail requirements:
Direct technical consultation for structural design and installation feasibility.
+86 139-4056-5574Common questions regarding our heavy-duty rail flatcar turntables.
Our rail flatcar turntables are custom-engineered based on your specific vehicle and cargo requirements. We routinely design and manufacture heavy-duty turntables with capacities such as 30 tons, 50 tons, and beyond for industrial applications.
We utilize advanced proximity-switch positioning systems and variable frequency motors to ensure controlled, smooth stopping. This guarantees that the turntable's rails align perfectly flush with the existing workshop tracks.
Yes. We offer pit-mounted turntable configurations. The equipment is installed within a foundation pit so that the rotating platform and rails are completely flush with your finished floor, allowing safe passage for workers and other equipment.
Our turntables are ideal for 90° cross-track intersections, T-junction branch layouts, and complex multi-directional routing systems. The rotation range (e.g., 0°-90° or 360°) is customized to your layout.
Absolutely. We engineer the platform's rail center distance (gauge) and rail type (such as standard P43 steel rails) to perfectly match your existing industrial rail system.
For heavy-duty applications, we typically use a robust pin-gear drive system combined with a central rotating support and distributed support wheels. This ensures stable rotation even under imbalanced heavy loads.
Yes, we provide global service. We supply comprehensive CAD/PDF engineering drawings, foundation pit designs, and step-by-step installation guidance for projects worldwide.
To provide an accurate quote, please inform us of your required load capacity, track gauge, rail type, preferred platform diameter, and the specific turning angles required for your workshop layout.
